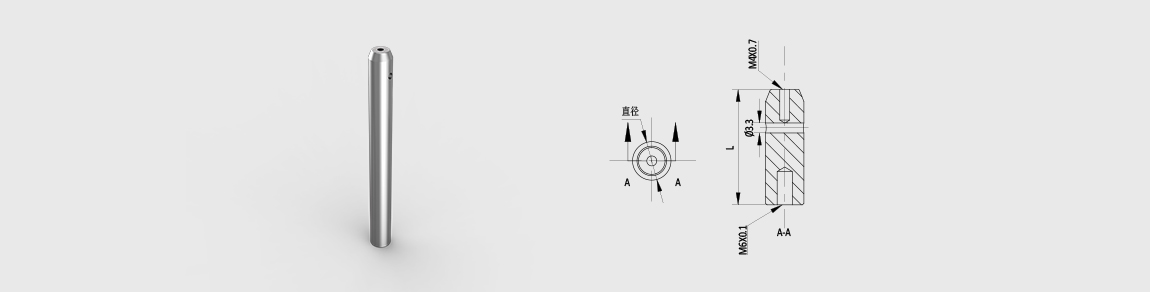

Polished stainless steel material, Diameter 12.7mm
One side with M4 thread hole, the other side with M6 thread hole
Side with 3.3mm hole, allowing the use of hex keys to easily lock optical components.
Can be directly fixed on a surface or base with threaded holes.
Various length mounting posts and matched aluminium post holders can adjusted to various heights.
Co-use With height fixing ring, the height of the posts is not affected when rotating
7 heights are available,height from 25.4mm~152.4mm
Special heights can be customized
