75mm 1" 8M Fixed Focal Length Lens
Price Option
Product No. 600033
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 75mm
- F/# 2.8
- Max. sensor size 1"
- Mount C
- Resolution 8MP
- Working Distance 0.5m～∞
- Filter Thread M39×0.5mm
- FOV 12.2°×9.8°×7.3°
- Distrotion 0.75%@y=8.0mm
- Weight 187g
| No. | Item | Specifications | |
| 1 | Max. sensor size | 1"(16mm) | |
| 2 | Focal Length | 75mm | |
| 3 | Mount | C-Mount | |
| 4 | F/# | F2.8-F22 | |
| 5 | Working Distance | 0.5m~∞ | |
| 6 | FOV(Diagonal x H xV) | 1/1.8" | 12.2°×9.8°×7.3° |
| 1/2.3" | 6.1°×4.9°×3.7° | ||
| 1/2.5" | 4.6°×3.7°×2.8° | ||
| 7 | Object Size (at the minimum focus distance) |
1/1.8" | 89.2×71.36×53.5mm |
| 1/2.3" | 44.8×35.8×26.9mm | ||
| 1/2.5" | 33.6×26.9×20.2mm | ||
| 8 | BFL（in air） | 23.15mm | |
| 9 | Operation | Focus | Manual |
| Aperture | Manual | ||
| 10 | Distortion | 1/1.8" | 0.75%@y=8.0mm |
| 1/2.3" | 0.18%@y=4.0mm | ||
| 1/2.5" | 0.11%@y=3.0mm | ||
| 11 | Filter thread | M39×0.5 | |

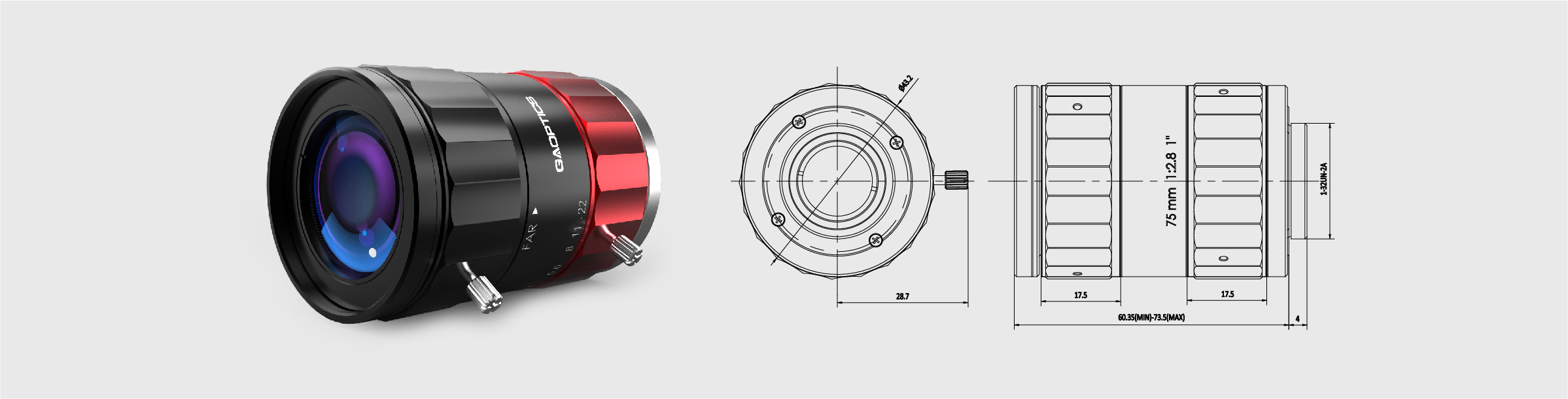

| 12 | Lens Size(W x L) | 50.3×77.5mm | |
| 13 | Weight | 187g | |
| 14 | Work Temperature | -20℃～+60℃ | |
| 15 | Distance of entrance pupil | 33.48mm | |
| 16 | Diameter of entrance pupil | 26.65mm | |
| 17 | Distance of exit pupil | -48.22mm | |
| 18 | Diameter of exit pupil | 17.42mm | |
| 19 | Total optical length | 76.75mm | |
| 20 | Magnification | -0.1781 | |
| Focus Distance | Magnification | Front DOV(mm) | Back DOV(mm) |
| 500mm | -0.17806 | 0.6339 | 0.6355 |
| 550mm | -0.15908 | 0.7669 | 0.7690 |
| 600mm | -0.14376 | 0.9125 | 0.9153 |
| 650mm | -0.13112 | 1.0708 | 1.0744 |
| 700mm | -0.12054 | 1.2417 | 1.2462 |
| 750mm | -0.11153 | 1.4253 | 1.4307 |
| 800mm | -0.10377 | 1.6215 | 1.6281 |
| 850mm | -0.09703 | 1.8302 | 1.8382 |
| 900mm | -0.09110 | 2.0516 | 2.0610 |
| 950mm | -0.08586 | 2.2856 | 2.2967 |
GA 1" 8M Fixed Focal Length Lenses, max imaging sensor size is 16mm, combined with large format, high resolution and compact design, very suitable for the latest high resolution sensors.
Product characteristics
1. 8 Mega pixels, 1" imaging Format，150lp/mm@±8mm;
2. Focal length covering 8-75 mm;
3. Large optical format & high resolution;
4. Compact design, Meet the limited usage space.
