50mm 2/3"  VIS-NIR Fixed Focal Length Lens

50mm 2/3" VIS-NIR Fixed Focal Length Lens

Price Option

Product No. 601005

Stock Please Consult

Express DHL, Fedex etc.

Product file downloadClick file to download
Focal Length 50mm
F/# 2
Max. sensor size 2/3"
Mount C
Working Distance 0.4m~∞
Filter Thread M25.5x0.10mm
FOV 12.3°×9.6°×8°
TV Distrotion 0.07%
Weight 60g
  No. Item Specifications
1 Max. sensor size 2/3"(11mm)
2 Focal Length 50mm
3 Mount C-Mount
4 F/# F2.5-F16
5 Working Distance 0.3m~∞
6 FOV(Diagonal x H xV) 2/3" 12.3°×9.6°×8°
7 BFL(in air) 19.6mm
8 Operation Focus Manual
Aperture Manual
9 TV Distortion 2/3" 0.07%
10 Filter thread M25.5×0.5mm

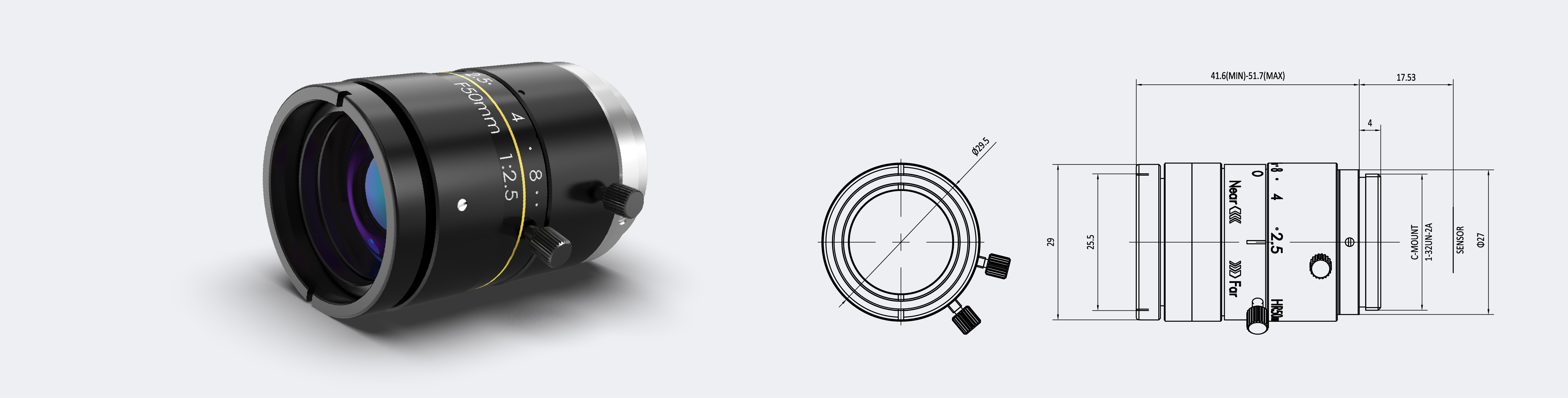

11 Lens Size D29.5×55.7mm
12 Weight 60g
13 Work Temperature -10℃~+50℃
14 Magnification -0.2132

Working Distance Magnification Ring Thicknes FOV(mm)
2/3"
(8.45mm×7.07mm)
1/1.8"
(7.38mm×4.92mm)
1/2"
(6.22mm×4.67mm)
H V H V H V
25mm / / / / / / / /
50mm / / / / / / / /
75mm -2.3712 118mm 3.56  2.98  3.11  2.07  2.62  1.97
100mm -1.0849 54mm 7.79  6.52  6.80  4.53  5.73  4.30
150mm -0.5203 26mm 16.24  13.59  14.18  9.46  11.95  8.98
200mm -0.3422 17mm 24.69  20.66  21.57  14.38  18.18  13.65
250mm -0.255 12mm 33.14  27.73  28.94  19.29  24.39  18.31
300mm -0.2132   39.63  33.16  34.62  23.08  29.17  21.90
350mm -0.1688   50.06  41.88  43.72  29.15  36.85  27.67
400mm -0.1445   58.48  48.93  51.07  34.05  43.04  32.32
450mm -0.1262   66.96  56.02  58.48  38.99  49.29  37.00
500mm -0.1121   75.38  63.07  65.83  43.89  55.49  41.66
550mm -0.1007   83.91  70.21  73.29  48.86  61.77  46.38
600mm -0.0916   92.25  77.18  80.57  53.71  67.90  50.98
700mm -0.0774   109.17  91.34  95.35  63.57  80.36  60.34
800mm -0.0670   126.12  105.52  110.15  73.43  92.84  69.70
900mm -0.0591   142.98  119.63  124.87  83.25  105.25  79.02
1000mm -0.0528   160.04  133.90  139.77  93.18  117.80  88.45

GU Optics pushes out a new series lens, VIS-NIR FA Lens, its working wavelength covers visible light and near-infrared light. And its focal length covers 8mm, 12mm, 16mm, 25mm, 35mm, and 50mm. With high resolution design and compact structure, this series of lenses can be widely used in industrial automation, machine vision, PCB inspection, biology, medicine, environmental protection and other fields.
