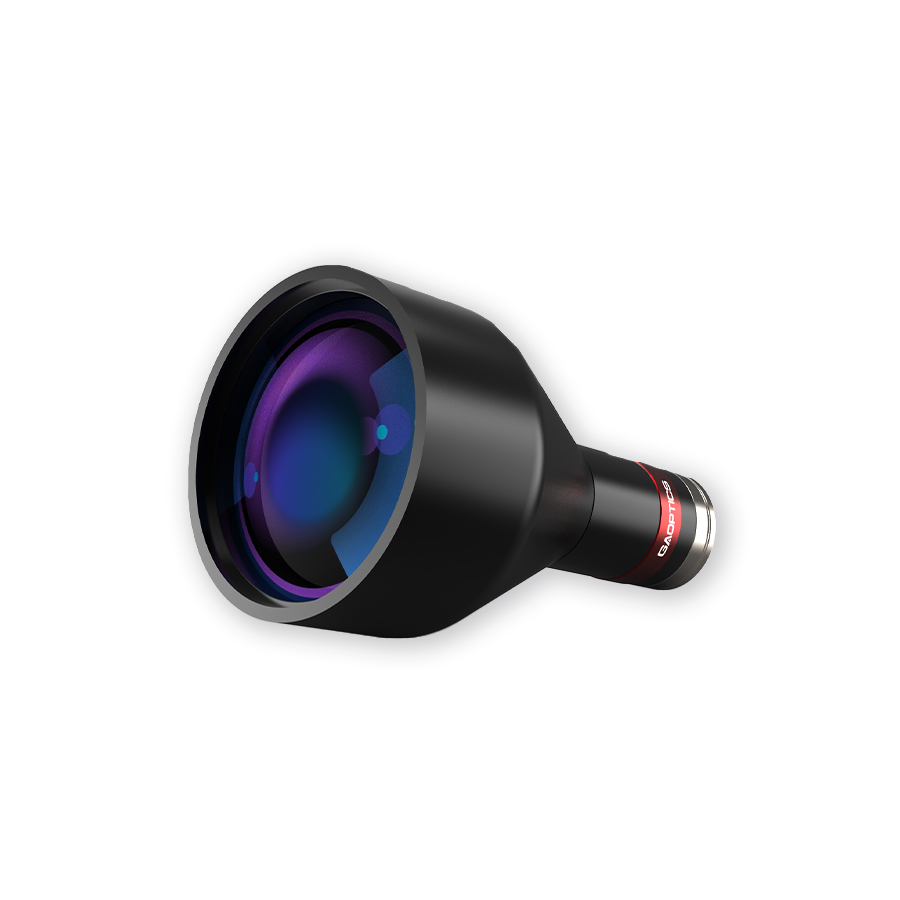

0.138X Working Distance 210mm 1/1.8
Price Option
Product No. 610006
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Image Plane(Max) 9mm
- FOV 65mm
- Magnification 0.138X
- Working Distance 211mm
- Max. sensor size 1/1.8"
- F/# 4.7
- Distrotion ＜0.05%
- Telecentricity ＜0.06°
- DOV ±9.87mm
- MTF ＞30%@195lp/mm
- Illumination Port -
- Mount C-Mount
- Length 147.9mm
- Diameter 87.4mm
- Weight 756g
| NO | Item | Specifications | |
| 1 | Optical Configuration | Double Telecentric | |
| 2 | Magnification | 0.138X | |
| 3 | Working Distance | 211.00mm | |
| 4 | DOV | ±9.87mm | |
| 5 | Telecentricity | ＜0.06° | |
| 6 | Distortion | ＜0.05% | |
| 7 | F/# | F4.7 | |
| 8 | Resolution/MTF @F4.7 | ＞30%@195lp/mm | |
| 9 | Max Object Space FOV | Ф65mm | |
| 10 | Max Image Space FOV | Ф9mm | |
| 11 | FOV（H×V） | 1/1.8" | 52.2×39.1mm |
| 1/2.5" | 42×31.2mm | ||
| 12 | Lens Mount | C-Mount | |

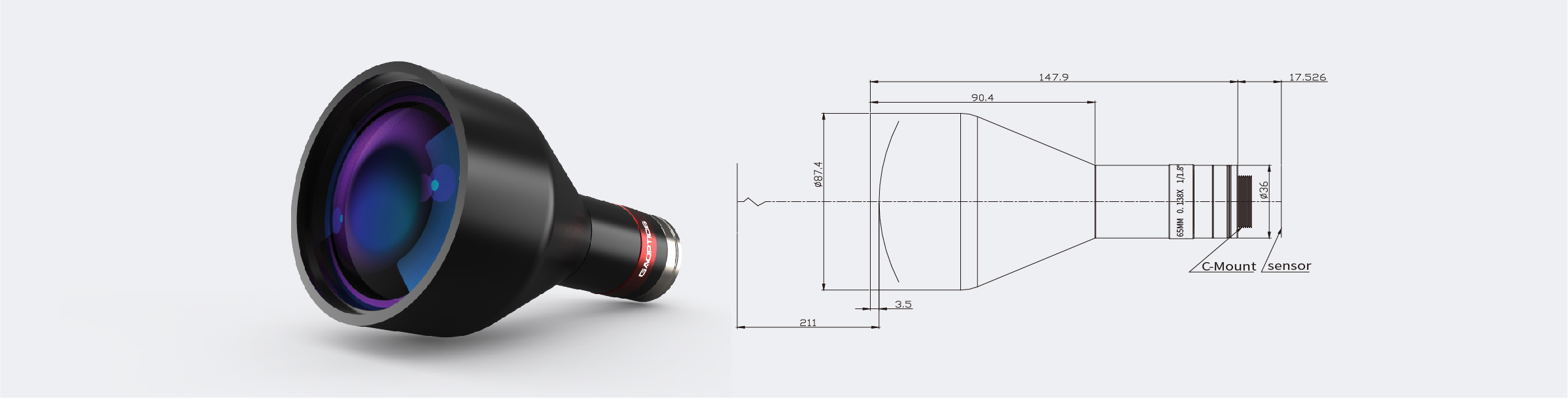

| 13 | Lens Size（Dia.×Length） | Ф87.4×147.9mm | |
| 14 | The distance from the front end of imaging lens to the first surface of the first glass lens | 3.5mm | |
GA Large FOV double telecentric lens’s fov can reach 250mm in object field of view, and its maximμm image size includes 1/1.8","2/3","1","4/3".
