0.066X Working Distance 430mm 1
Price Option
Product No. 610022
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Image Plane(Max) 16mm
- FOV 240.9mm
- Magnification 0.066X
- Working Distance 431mm
- Max. sensor size 1
- F/# 6.4
- Distrotion ＜0.02%
- Telecentricity ＜0.02°
- DOV ±58.07mm
- MTF ＞30%@140lp/mm
- Illumination Port -
- Mount C-Mount
- Length 542.3mm
- Diameter 280mm
- Weight /
| No. | Item | Specifications | |
| 1 | Optical Configuration | Double Telecentric | |
| 2 | Magnification | 0.0664X | |
| 3 | Working Distance | 431mm | |
| 4 | DOV | ±58.07mm | |
| 5 | Telecentricity | ＜0.02° | |
| 6 | Distortion | ＜0.02% | |
| 7 | F/# | F6.4 | |
| 8 | Resolution/MTF @F6.4 | >30%@140lp/mm | |
| 9 | Max Image Space FOV | Φ16mm | |
| 10 | Max Object Space FOV | Φ240.9mm | |
| 11 | FOV（H×V） | 1" | 193×145mm |
| 2/3" | 133×99mm | ||
| 1/1.8" | 108×81mm | ||
| 1/2.5" | 87.3×64.8mm | ||
| 12 | Lens Mount | C-Mount | |

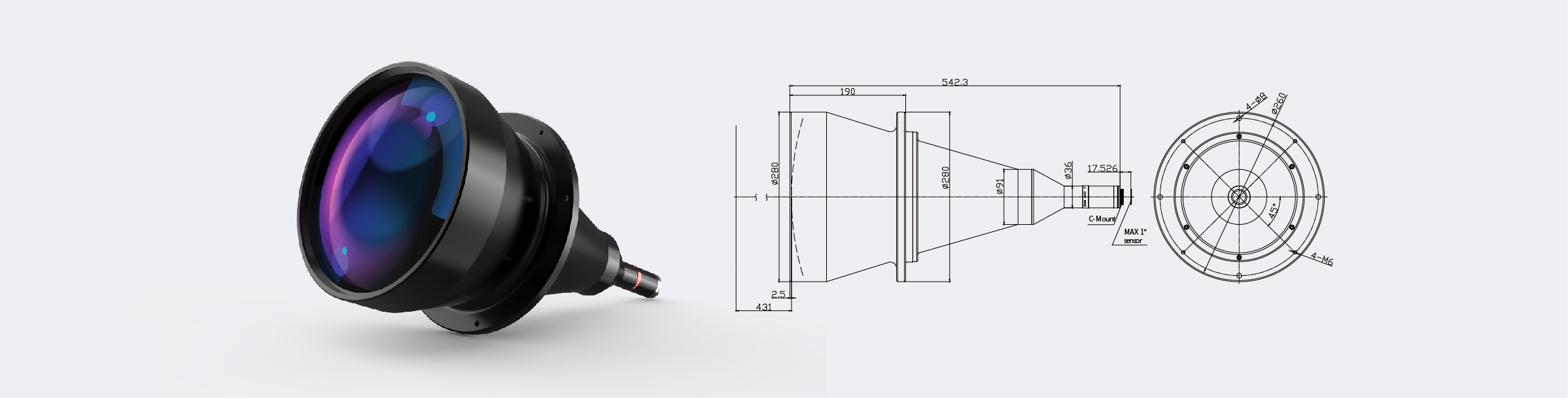

| 13 | Lens Size（Dia.×Length） | Φ280×542.3mm | |
| 14 | The distance from the front end of imaging lens to the first surface of the first glass lens | 2.5mm | |
GA Large FOV double telecentric lens’s fov can reach 250mm in object field of view, and its maximμm image size includes 1/1.8","2/3","1","4/3".
