88° MBF=20.00mm Relay Lens
Price Option
Please Consult
Product No. 630012
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Distrotion ＜0.5%
- MAX FOV 88°
- Diameter of exit pupil φ4.00±0.5mm
- Distance of exit pupil/MBF 20.00±1mm
- Weight 405g
| Specification | ||
| Distortion | ＜0.5% | |
| MAX FOV | 88° | |
| Weight | 405g | |
| Diameter of exit pupil | φ4.00±0.5mm | |
| Distance of exit pupil/MBF | 20.00±1mm | |

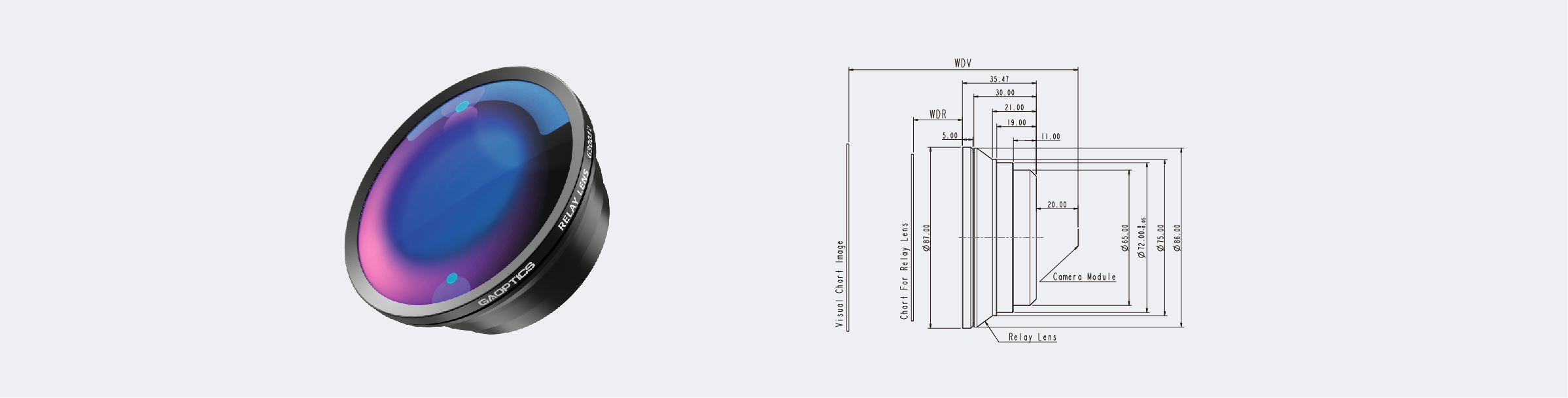

| WDV | WDR | Chart Size |
| 400mm | 148.68mm | 360.03mm |
| 600mm | 183.34mm | 426.52mm |
| 800mm | 205.87mm | 469.76mm |
| 1000mm | 221.7mm | 500.14mm |
| 2000mm | 260.31mm | 574.24mm |
| 3000mm | 275.82mm | 604.01mm |
| 4000mm | 284.19mm | 620.07mm |
| 10000mm | 300.42mm | 651.22mm |
| 30000mm | 308.2mm | 666.18mm |
| Inf | 312.17mm | 673.77mm |
Module detection Relay Lens can reduce the detection space and simulate different test distances, which can meet the high pixel requirements
