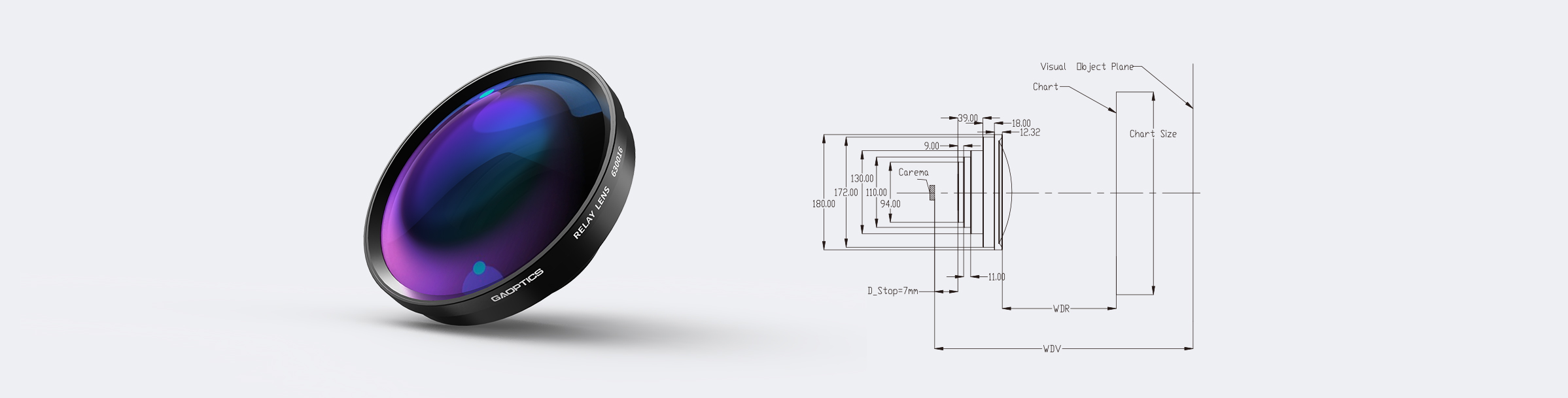

150° MBF=7.00mm Relay Lens
Price Option
Please Consult
Product No. 630016
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Distrotion ＜60%
- MAX FOV 150°
- Diameter of exit pupil 4.00mm
- Distance of exit pupil/MBF 7.00mm
- Weight 2664g
| Specification | ||
| Distortion | ＜60% | |
| MAX FOV | 150° | |
| Weight | 2664g | |
| Diameter of exit pupil | 4.00mm | |
| Distance of exit pupil/MBF | 7.00mm | |
| WDV | WDR | Chart Size |
| 900mm | 123.95mm | 530.44mm |
| 1000mm | 126.84mm | 538.82mm |
| 2000mm | 141.2mm | 580.75mm |
| 5000mm | 150.88mm | 608.94mm |
| 10000mm | 154.33mm | 619.04mm |
| 20000mm | 156.09mm | 624.22mm |
| 30000mm | 156.69mm | 625.97mm |
| 50000mm | 157.16mm | 627.37mm |
| 100000mm | 157.52mm | 628.43mm |
| Inf | 157.89mm | 629.49mm |
Module detection Relay Lens can reduce the detection space and simulate different test distances, which can meet the high pixel requirements
