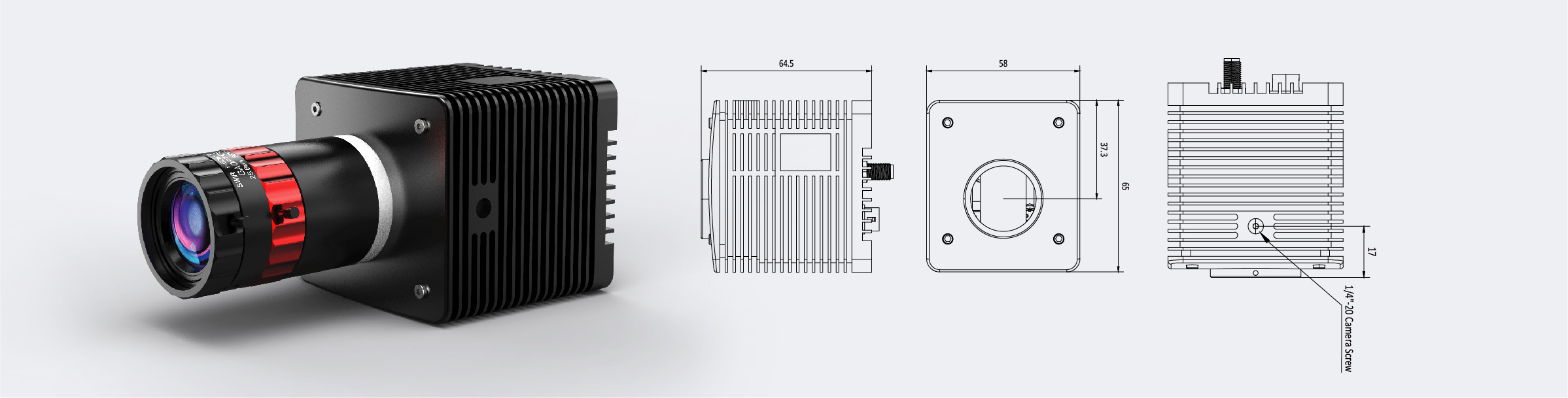

900-1700nm Resolution640×512 GE Mount Camera
Price Option
Product No. 680104
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Working Wavelength 900～1700nm
- Resolution 640×512
- Pixel Size 15μm
- CCD 9.6×7.68mm
- Frame Rate（Hz） 100
- Size 67×70×60mm
- Mount C
- Digital Output GiGE
| Stock No. | 680103 | 680104 |
| Detector | InGaAs Focal Plane Detector | |
| Working Wavelength | 400 ~ 1700 nm | 900 ~ 1700 nm |
| Resolution | 640 x 512 | 640 x 512 |
| Pixel Size | 15 μm | 15 μm |
| Sensor Size | 9.6mm x 7.68mm | 9.6mm x 7.68mm |
| Quantum Efficiency | ＞70 % (1.0 ~ 1.6 um） | |
| Frame Rate | 100 Hz | |
| Integral Type | snapshot | |
| Integration Time | 50 μs ~ 20 ms, 100Hz integration 9ms | |
| On-Board Image Processing | Correction of bad points/Image smoothing/Image denoising/Controllable shutter compensation | |
| ADC | 14 bit | |
| Analog Video Output | PAL | |
| Digital Output | 1000M GigE | |
| Power Input | DC 8-12V | |
| Power | ＜4W （no TEC） | |
| Size | 67 mm x 70 mm x 60 mm | |
| Weight | 175 g（Not include lens） | |
| Lens Mount | C-Mount | |
| Ambient Temperature | -20 ℃ ~ +50 ℃（ | |
| Storage Temperature | -40 ℃ ~ + 70 ℃ | |
Our SWIR camera working wavelength is 900-1700nm and resolution up to 640X512, for different applications, we push out USB, Gigabit Network and Camera Link interface mount cameras.
