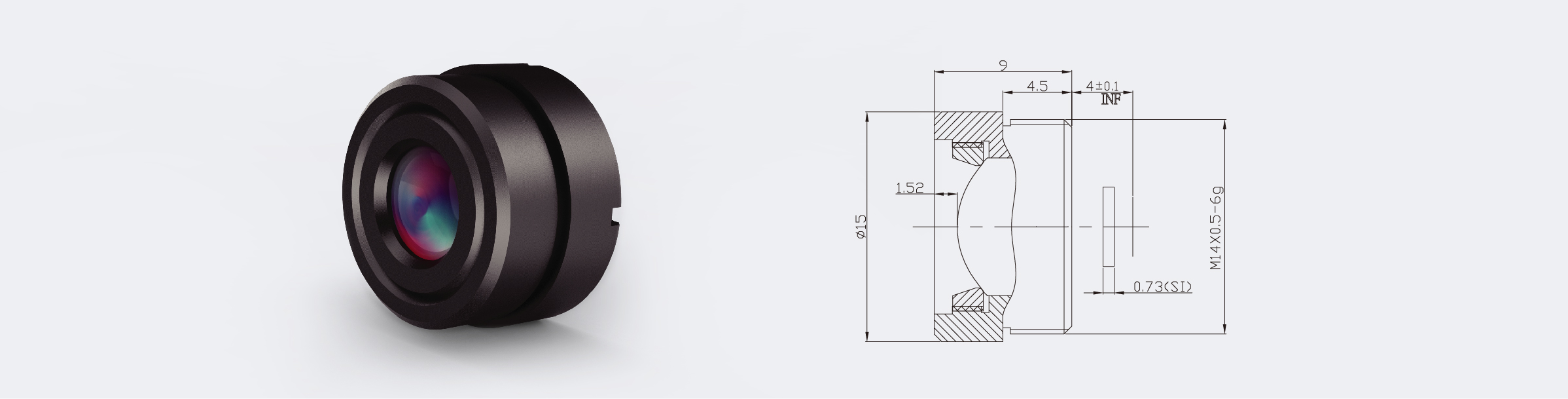

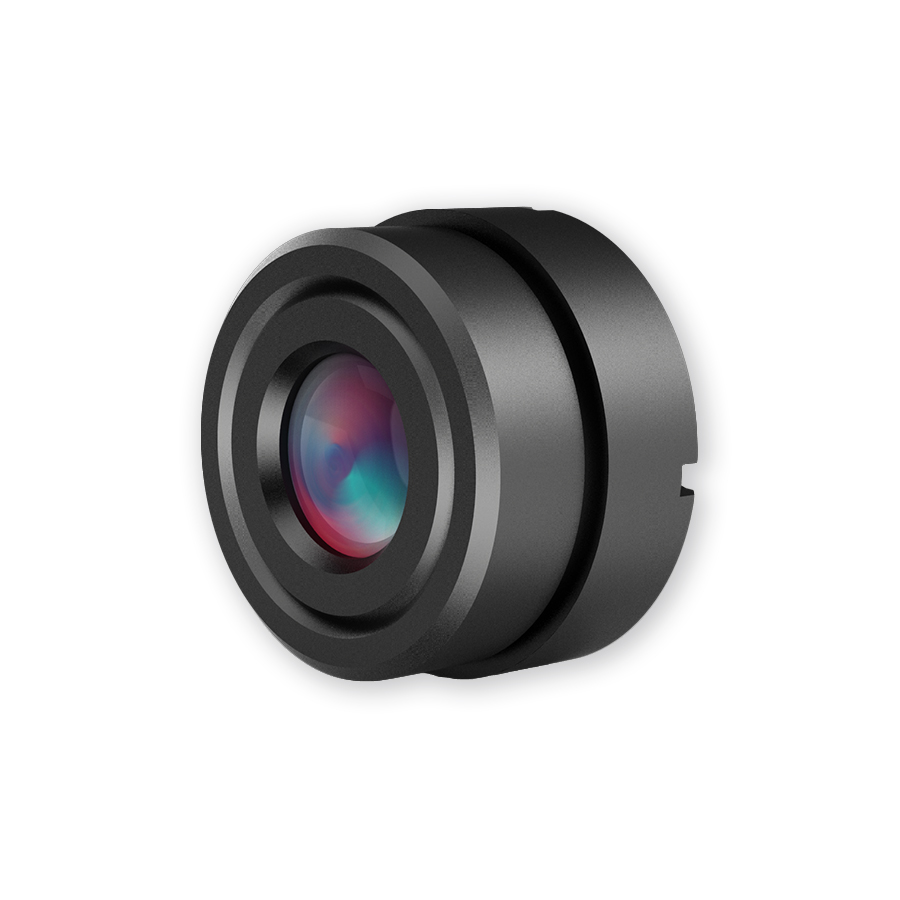

7mm Long Wavelength Infrared Lens
Price Option
Please Consult
Product No. 680206
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 7mm
- Resolution 256×192
- Pixel Size 12μm
- F/# 1.0
- FOV 24.8°×18.7°
- Working Wavelength 8～12μm
- Working Distance 0.2m～∞
- Weight ＜10g
| NO | Item | Specification |
| 1 | EFL | 7mm |
| 2 | Sensor | 256x192 12μm |
| 3 | FNo | 1 |
| 4 | FOV (HxV) | 24.8°x18.7° |
| 5 | Wavelength | 8-12μm |
| 6 | Transmittance | >88% |
| 7 | Front Lens Coating | HD |
| 8 | Focus | Fixed |
| 9 | Focus distance | 0.2m~∞ |
| 10 | Athermalizing | Optical athermalization |
| 11 | Sealing | |
| 12 | Operation Temperature | -40~80°C |
| 13 | Weight | <10g |
| 14 | Appearance Grade | 60-40 |
| 15 | Number of lenses | 2 piece |
The main working wavelength of GA infrared lens is 8-12μm, which can be used with the mainstream infrared chips on the market. We can OEM different interfaces and different focus for customers
