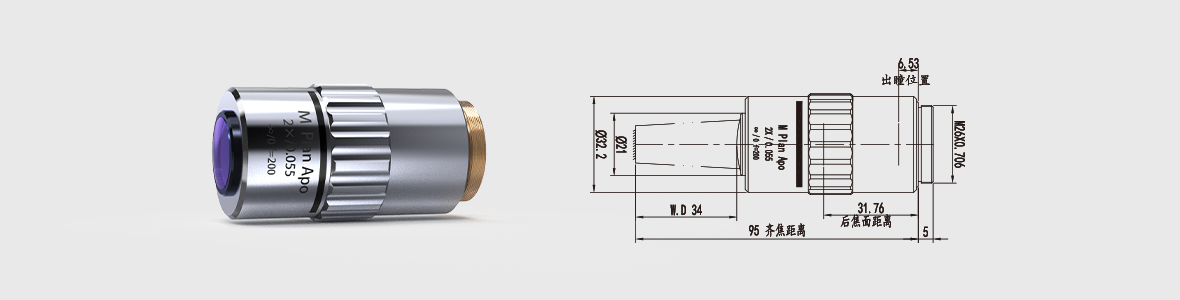

2X M PLAN APO Infinity Corrected LWD Microscope Objectives
Price Option
Product No. 690000
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Magnification 2X
- NA 0.06
- Working Distance 34mm
- Focal Length 100mm
- Wavelength 400~700nm
- Depth of Focus 76μm
- Diameter of exit pupil 12mm
- Resolution 5μm
- Focal Length of Tube Lens f200mm
- FOV 1/2"Sensor 2.4X3.2mm
- FOV 2/3"Sensor 3.3X4.4mm
- Length（thread not included） 61mm
- Thread M26X0.706
- Type M Plan APO
Grand Unified Optics( Beijing)Co., Ltd pushed out the Infinity Corrected LWD Microscope objectives with the magnification 2X、5X、10X、20X、50X、100X, its wavelength range is 400nm~700nm and adopts 。
