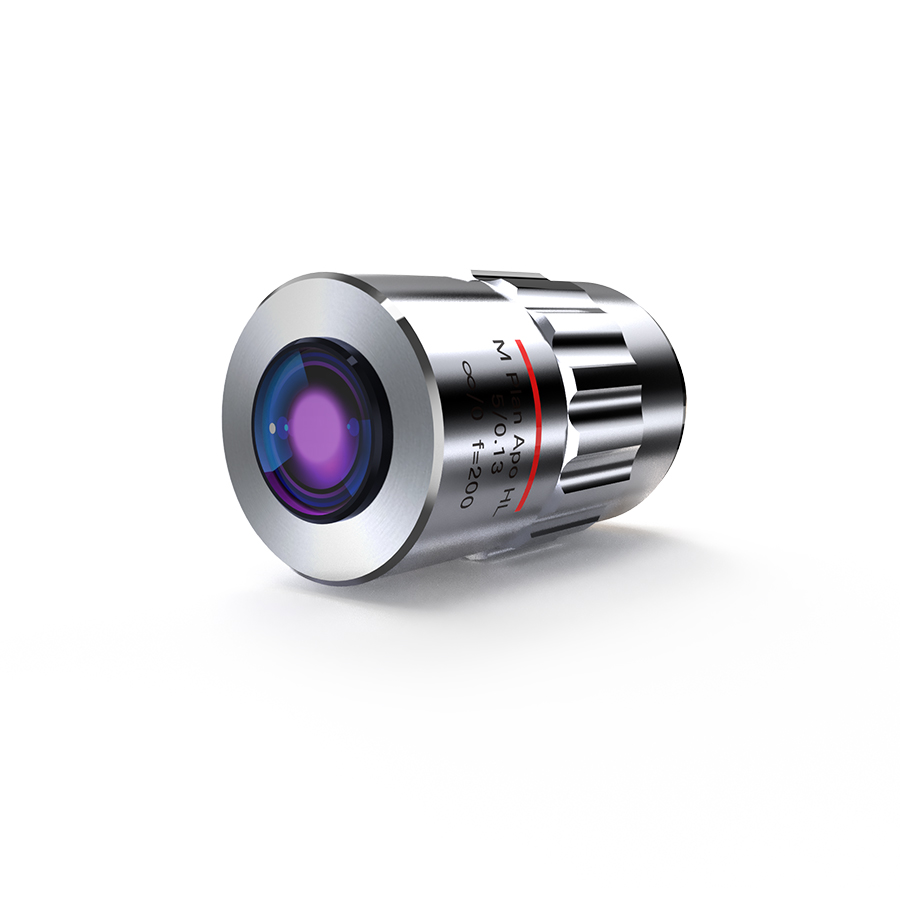

20X M PLAN APO Infinity Corrected LWD Microscope Objectives
Price Option
Product No. 690003
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Magnification 20X
- NA 0.42
- Working Distance 20mm
- Focal Length 10mm
- Wavelength 400~700nm
- Depth of Focus 1.6μm
- Diameter of exit pupil 8.4mm
- Resolution 0.7μm
- Focal Length of Tube Lens f200mm
- FOV 1/2"Sensor 0.24X0.32mm
- FOV 2/3"Sensor 0.33X0.44mm

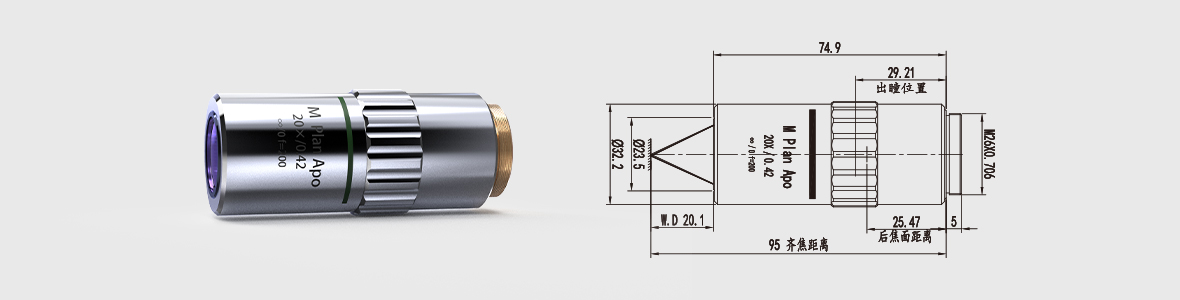

- Length（thread not included） 75mm
- Thread M26X0.706
- Type M Plan APO
Grand Unified Optics( Beijing)Co., Ltd pushed out the Infinity Corrected LWD Microscope objectives with the magnification 2X、5X、10X、20X、50X、100X, its wavelength range is 400nm~700nm and adopts 。
