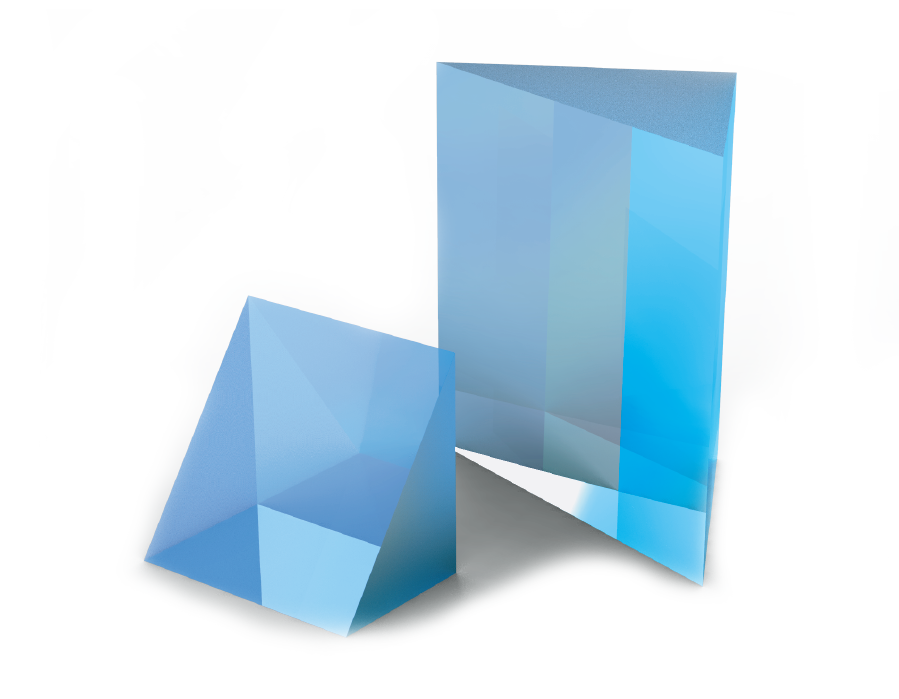

Right angle prisms are typically used to bend the image path or turn the light path by 90°.Combining two right angle prisms can also combine the image and deflect the beam. We suggest that use the right angle prism with Hypotenuse aluminum coated for the application of large AOI.Grand Unified Optics offers a wide range of right angle prisms for your application.
- Material H-K9L Optical Glass
- Dimension Tolerance +0.0/-0.2mm
- Surface Accuracy λ/4 @ 632.8nm
- Surface Quality 40-20
- Angle Tolerance ±3 arcmin
- Pyramid Tolerance <10 arcmin
- Bevel 0.25~0.5mmX45°
- Coating As product list
Size
Coating
Material
Surface Accuracy
