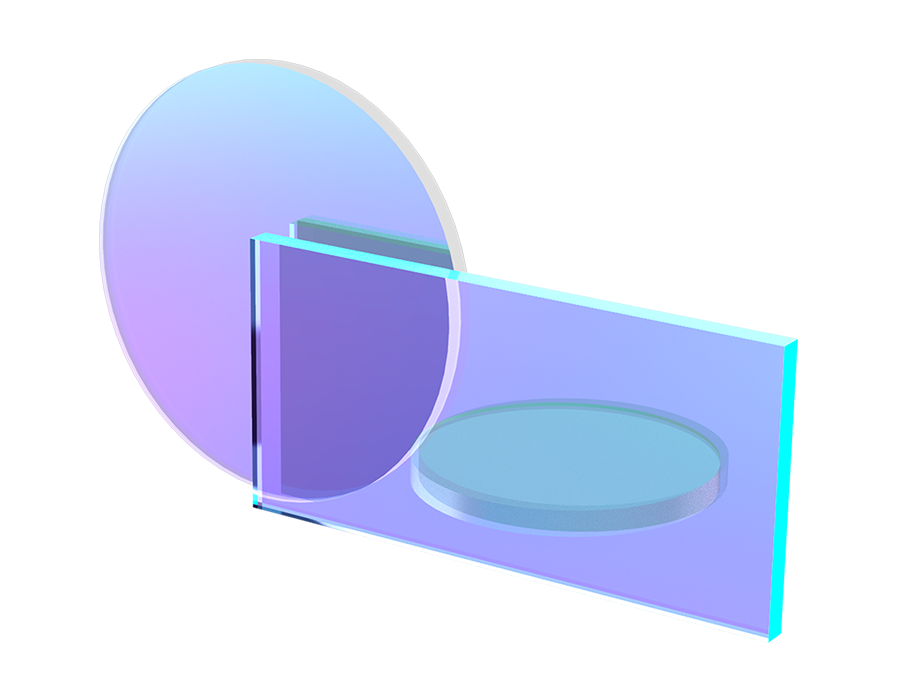

Shortpass Dichroic Filter
Dichroic filters are used to transmit wavelengths that longer than the cut-on wavelength or shorter than the cut-off wavelength. Depending on the wavelength range of reflection or transmission, they are divided into long pass filter and short pass filter. Dichroic filters are ideal for applications of fluorescence excitation spectrum measurement, beam splitting or beam combination. Compared with the traditional design of long pass filter and short pass filter (0° angle of incidence) , Dichroic filters are designed for a 45° angle of incidence, which separate the reflection and transmission bands in space, and make it widely used in various optical systems and laboratory optical path.
Shortpass Dichroic Filter
Material Optical Grade Float Glass
Transmitted Wavefront error λ/ 4 @ 633 nm
Parallelism <30 arcsec
Surface Quality 40-20
Dimensional Tolerance +0.0/-0.1mm
Thickness 2mm ±0.2mm
*Central Wavelength Tolerance ±10nm
**Transmission Tavg>90%
**Reflection Ravg>98%
CA >90%
Angle of Incidence 45°
Pro No.
Parameter
Dia
CWL
Reflection Wavelength
Transmission Wavelength
Delivery time
Compare
Price
Purchase
Φ12.5mm
450nm
470~545nm
370~430nm
In stock
$32.50
Φ12.5mm
500nm
520~610nm
370~480nm
In stock
$32.50
Φ12.5mm
550nm
575~725nm
400~530nm
In stock
$32.50
Φ12.5mm
600nm
625~795nm
400~580nm
In stock
$32.50
Φ12.5mm
650nm
675~850nm
400~630nm
In stock
$32.50
Φ12.5mm
700nm
725~900nm
400~680nm
In stock
$32.50
Φ12.5mm
750nm
800~990nm
400~725nm
In stock
$32.50
Φ12.5mm
800nm
850~1050nm
400~775nm
In stock
$32.50
Φ12.5mm
850nm
910~1110nm
400~820nm
In stock
$32.50
12.5x17.5mm
450nm
470~545nm
370~430nm
In stock
$35.83
12.5x17.5mm
500nm
520~610nm
370~480nm
In stock
$35.83
12.5x17.5mm
550nm
575~725nm
400~530nm
In stock
$35.83
12.5x17.5mm
600nm
625~795nm
400~580nm
In stock
$35.83
12.5x17.5mm
650nm
675~850nm
400~630nm
In stock
$35.83
12.5x17.5mm
700nm
725~900nm
400~680nm
In stock
$35.83
12.5x17.5mm
750nm
800~990nm
400~725nm
In stock
$35.83
12.5x17.5mm
800nm
850~1050nm
400~775nm
In stock
$35.83
12.5x17.5mm
850nm
910~1110nm
400~820nm
In stock
$35.83
Φ25mm
450nm
470~545nm
370~430nm
In stock
$40.83
Φ25mm
500nm
520~610nm
370~480nm
In stock
$40.83
