0.11X Working Distance 324mm 1
Price Option
Product No. 610041
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Image Plane(Max) 16mm
- FOV 145.45mm
- Magnification 0.11X
- Working Distance 324mm
- Max. sensor size 1
- F/# 6.4
- Distrotion ＜0.03%
- Telecentricity ＜0.03°
- DOV ±21.16mm
- MTF ＞30%@140lp/mm
- Illumination Port -
- Mount C-Mount
- Length 327.09mm
- Diameter 176.5mm
- Weight 5534g
| NO | Item | Specifications | |
| 1 | Optical Configuration | Double Telecentric | |
| 2 | Magnification | 0.110X | |
| 3 | Working Distance | 324mm | |
| 4 | DOV | ±21.16mm | |
| 5 | Telecentricity | ＜0.03° | |
| 6 | Distortion | ＜0.03% | |
| 7 | F/# | F6.4 | |
| 8 | Resolution/MTF @F6.4 | >30%@140lp/mm | |
| 9 | Max Object Space FOV | Φ16mm | |
| 10 | Max Image Space FOV | Φ145.45mm | |
| 11 | FOV （H×V） |
1" | 116×87mm |
| 2/3" | 80×60mm | ||
| 1/1.8" | 65×49mm | ||
| 1/2.5" | 52.7×39.1mm | ||
| 12 | Lens Mount | C-Mount | |

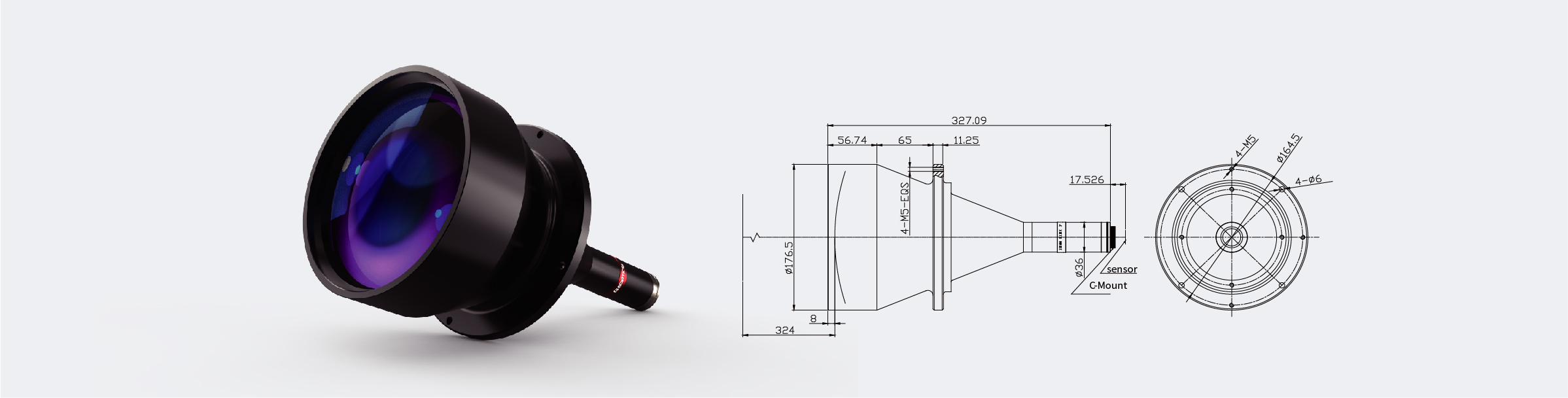

| 13 | Lens Size（Dia.×Length） | Φ176.5×327.09mm | |
| 14 | The distance from the front end of imaging lens to the first surface of the first glass lens | 8mm | |
GA Large FOV double telecentric lens’s fov can reach 250mm in object field of view, and its maximμm image size includes 1/1.8","2/3","1","4/3".
