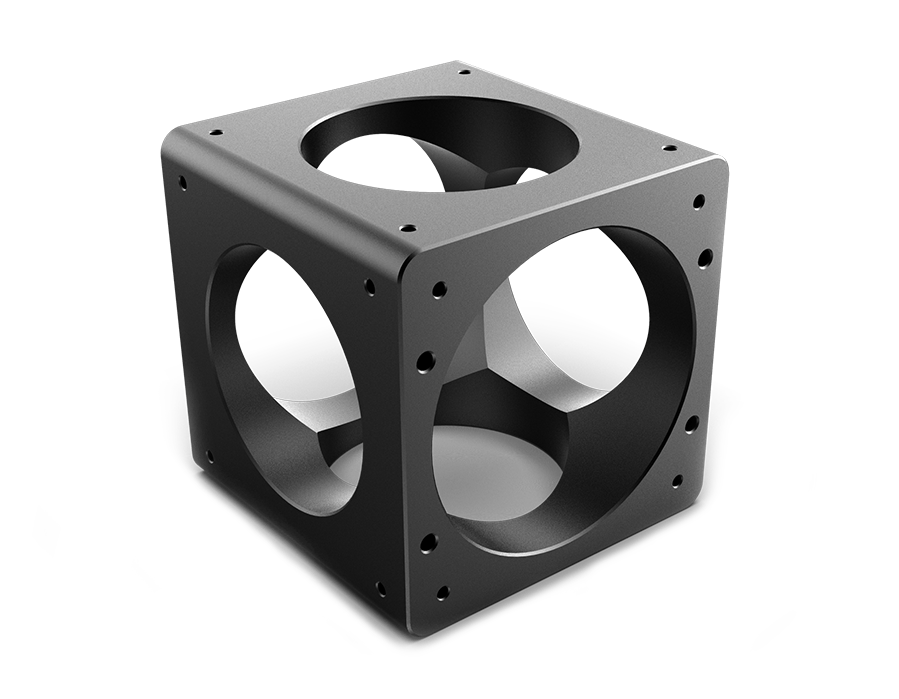

60 mm Cage Cubes
GU Optics’s 60 mm Cage Cubes For Holding Optic Mounts in 60 mm Cage Systems, Four Side with Internally SM2-Threaded Ports allow the cubes to be integrated with other accessories with SM2 thread, such as Φ2" Lens Tubes; There are four M3 tapped holes around the SM2 threaded port for fixing the cage cube and its accessories. Two Opposing Sides of 530102 with Φ6 mm Through Holes for Φ6 mm Cage Rods, the M4 around is used to fix the cage rods. The bottom of Cube Platforms (530104) with M4 Tapped hole, which can be Mounted to Posts, and its top have sixteen M4 tapped holes, can be used with 60mm cage cubes 530103 and 530102 together.
Product characteristics
1. Used for 60 mm cage systems.
2. Four Side with Internally SM2-Threaded Ports , Four M3 Tapped Holes on Four Faces for Securing Φ6 mm Cage Rods.
3. 530012 : Two Opposing Sides with Ø6 mm Through Holes for Φ6 mm Cage Rods.
4. 530014: Bottom-Located M4 Tapped Hole for Mounting to Φ1/2" Posts, Features Sixteen M4 Tapped Holes on the top, can Fit into the Top or Bottom of 530013 and 530012.
Product characteristics
1. Used for 60 mm cage systems.
2. Four Side with Internally SM2-Threaded Ports , Four M3 Tapped Holes on Four Faces for Securing Φ6 mm Cage Rods.
3. 530012 : Two Opposing Sides with Ø6 mm Through Holes for Φ6 mm Cage Rods.
4. 530014: Bottom-Located M4 Tapped Hole for Mounting to Φ1/2" Posts, Features Sixteen M4 Tapped Holes on the top, can Fit into the Top or Bottom of 530013 and 530012.
Thread
Features
Pro No.
Parameter
Thread
Features
Delivery time
Compare
Price
Purchase
