XYZ Translation Mount

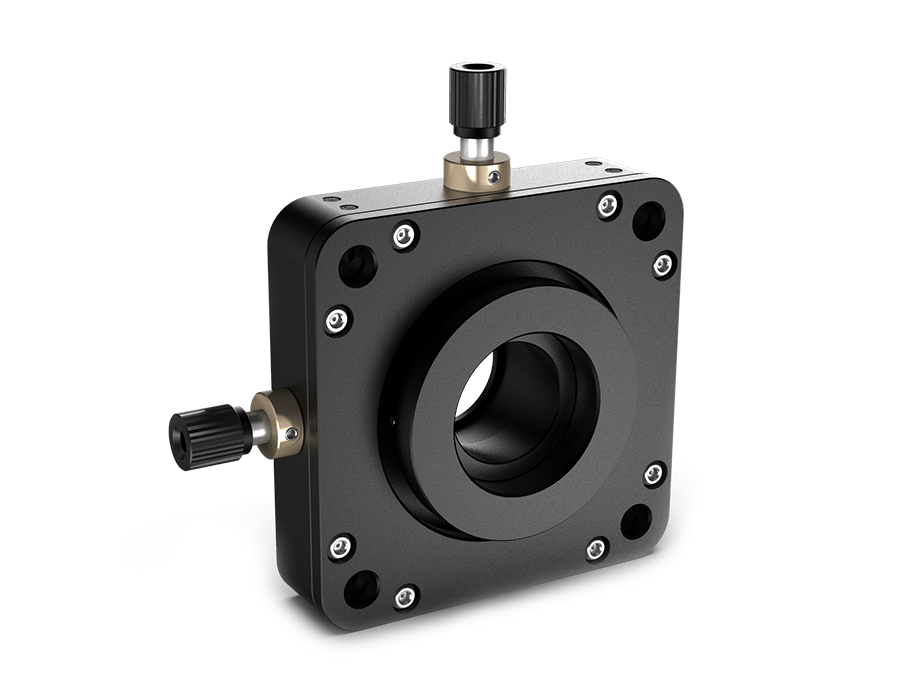

GU Optics’s XYZ Translation Mounts is designed to mount Φ25.4mm optics. The rear side with SM2 internal thread for mounting SM2-Threaded Lens Tubes Or SM2 adapters. Included one SM1 Retaining Ring (530082) For Fixing optics with a maximum thickness of 20.5 mm. The mount has four through holes for use with our Φ6 mm cage rods, making it compatible with our 60 mm Cage Systems.
Product characteristics
1. XY Adjustment Resolution: 0.25mm/rev.
2. Front side with SM1 internal thread for mounting Φ25.4 mm Optics.
3. Included one SM1 Retaining Ring (530082) For Fixing optics with a maximum thickness of 20.5 mm.
4. Rear side with SM2 internal thread for mounting SM2-Threaded Lens Tubes Or SM2 adapters.
5. 360° Rotation, 1° Engraved Graduations on Dial.
6. Bottom and side with M6 thread holes.
7. 60 mm Cage Compatible and Post Mountable.
Product characteristics
1. XY Adjustment Resolution: 0.25mm/rev.
2. Front side with SM1 internal thread for mounting Φ25.4 mm Optics.
3. Included one SM1 Retaining Ring (530082) For Fixing optics with a maximum thickness of 20.5 mm.
4. Rear side with SM2 internal thread for mounting SM2-Threaded Lens Tubes Or SM2 adapters.
5. 360° Rotation, 1° Engraved Graduations on Dial.
6. Bottom and side with M6 thread holes.
7. 60 mm Cage Compatible and Post Mountable.
Pro No.
Parameter
Size of Compatible Optics
Thread
Delivery time
Compare
Price
Purchase
