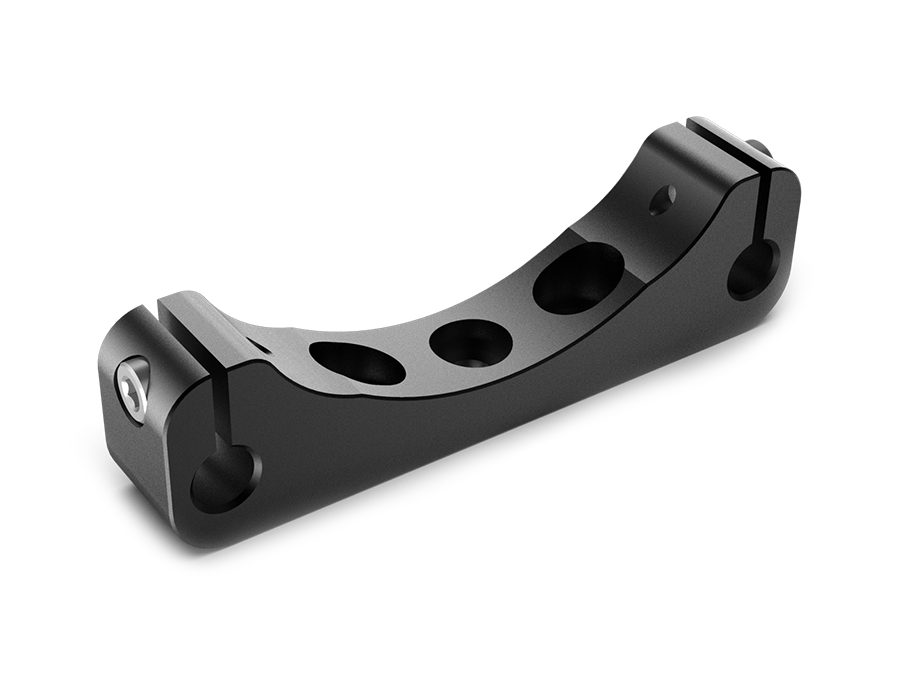

60 mm Cage Mounting Bracket
This 60 mm Cage Mounting Bracket allows 60 mm Cage Systems to be incorporated into other optomechanical assemblies. The Bracket has a flexure cut design for increased stability. It has two Φ6.0 mm through holes with cap screws that clamp the flexure locks onto the Φ6.0 mm Rods. It has three M4 counterbored holes for post mounting and has been specially designed to provide clearance for Φ2mm Lens Tubes.
Product characteristics
1. 60 mm Cage System Compatible.
2. Firmly Lock onto Φ6.0 mm Rods with Flexure Locking Design.
Product characteristics
1. 60 mm Cage System Compatible.
2. Firmly Lock onto Φ6.0 mm Rods with Flexure Locking Design.
Mounting Holes
Pro No.
Parameter
Mounting Holes
Delivery time
Compare
Price
Purchase
