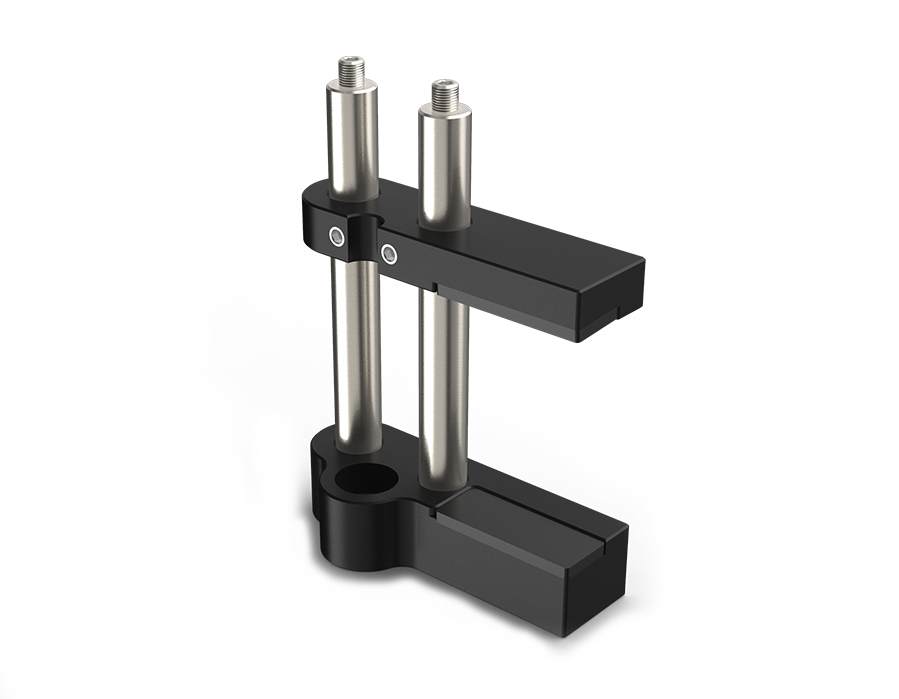

Fixed Mounts for Cylindrical Lens
Fixed cylindrical lens mounts are often used to mount cylindrical lenses or other rectangular optical components. Each mount consists of two fixed arms with rubber pads. The upper retaining arm slides along the post and is fitted with a set screw to attach to the post. The fixed arm below is fixed, and the bottom is equipped with M4 threaded holes, which can be connected to Φ12.7 mm stainless steel optical posts. If you need to install higher optical components, you can add a Φ6 mm coaxial system mounting post to the original coaxial post to increase the length of the post.

Product characteristics
1. Hold Rectangular Optics
2. Rubber Pads Protects Optics
3. Adjustable Optic Height
4. M4 Counterbores at bottom Enable Post Mounting
5. Fabricated from Black Anodized Aluminum
Fixed Mounts for Cylindrical Lens

Max Optic Height

Weight

Pro No.
Parameter
Max Optic Height
Max Optic Height
Weight
Weight
Delivery time
Compare
Price
Purchase
40mm
40mm
0.05kg
0.05kg
In stock
$58.00
66mm
66mm
0.06kg
0.06kg
In stock
$69.60
