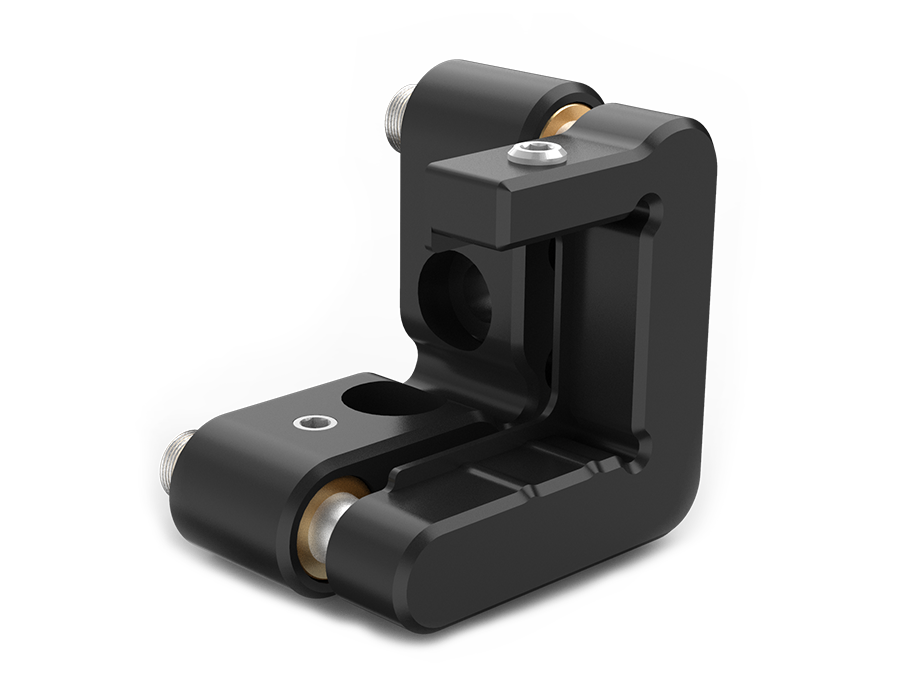

Kinematic Mounts for Rectangular Optics
Kinematic Mounts for Rectangular Optics are used to hold square or rectangular optics such as our square metal or dielectric mirrors and diffraction gratings. You can choose different heights, such as 12.7mm, 25.4mm, 50.8mm and other three sizes of square or rectangular optics. The adjustment frame has two adjustment knobs, which can adjust the pitch and yaw angle of the cylindrical lens within an angle of ±4°.
Product characteristics
1. Hold 12.7mm, 25.4mm, 50.8mm Square or Rectangular Optics
2. ±4° Tip/Tilt Adjustment Range
3. Mount Optics Greater than 3.0 mm Thick
Product characteristics
1. Hold 12.7mm, 25.4mm, 50.8mm Square or Rectangular Optics
2. ±4° Tip/Tilt Adjustment Range
3. Mount Optics Greater than 3.0 mm Thick
Configuration
Pro No.
Parameter
Max Optic Height
Configuration
Weight
Delivery time
Compare
Price
Purchase
