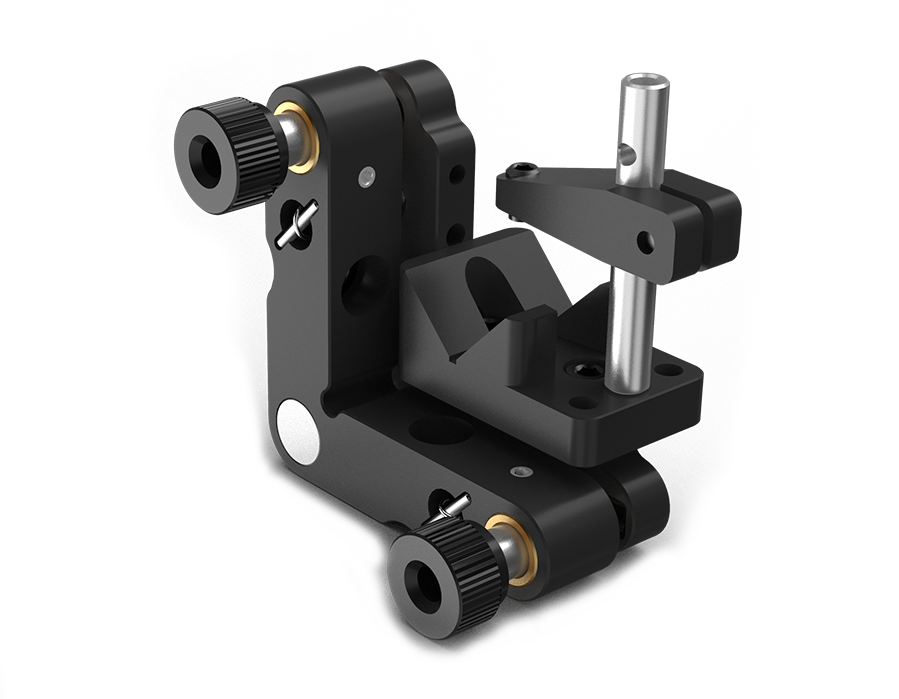

Post Mountable Kinematic V-Mounts
The Post Mountable Kinematic V-Mounts provide ±3 degrees of precision pitch and yaw adjustment for cylindrical objects. When the post is installed, these adjustable V-Clamps allow for height adjustment by changing the post's position in the post mount.
Product characteristics
1. Kinematic V-Block Mount is ideal for precision tip and tilt adjustment of cylindrical objects, such as a fiber collimator, laser pen, Beam Expanders etc.
2. Provides precision tip and tilt adjustment
3. Clamping force is applied via a Clamping Arm (one included with each mount)
Product characteristics
1. Kinematic V-Block Mount is ideal for precision tip and tilt adjustment of cylindrical objects, such as a fiber collimator, laser pen, Beam Expanders etc.
2. Provides precision tip and tilt adjustment
3. Clamping force is applied via a Clamping Arm (one included with each mount)
Pro No.
Parameter
Clamping Size of Optics
Weight
Delivery time
Compare
Price
Purchase
